Battery Energy Storage

Telecom Backup LFP Battery Solution

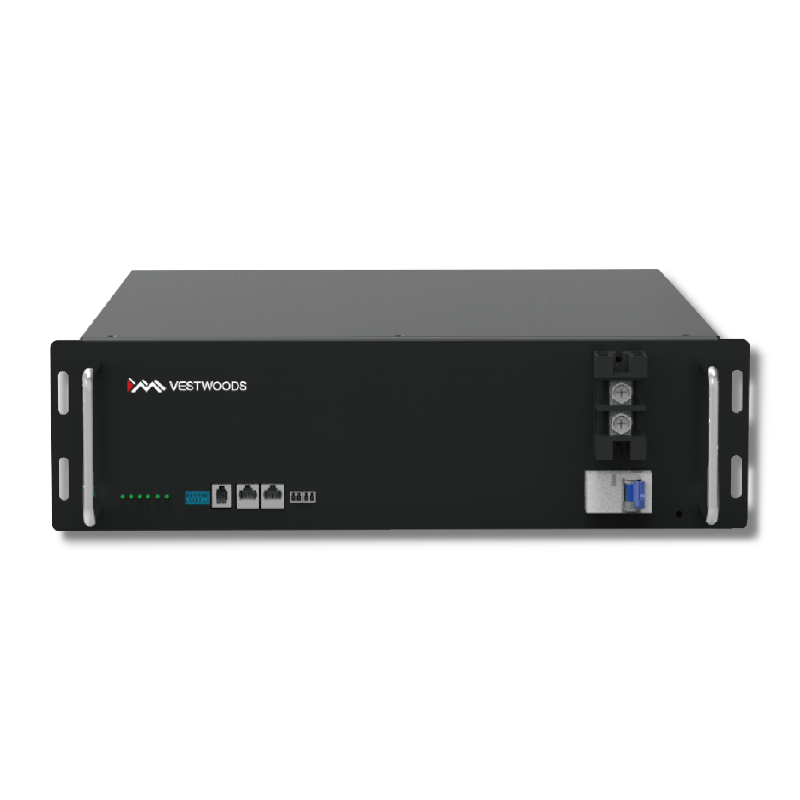

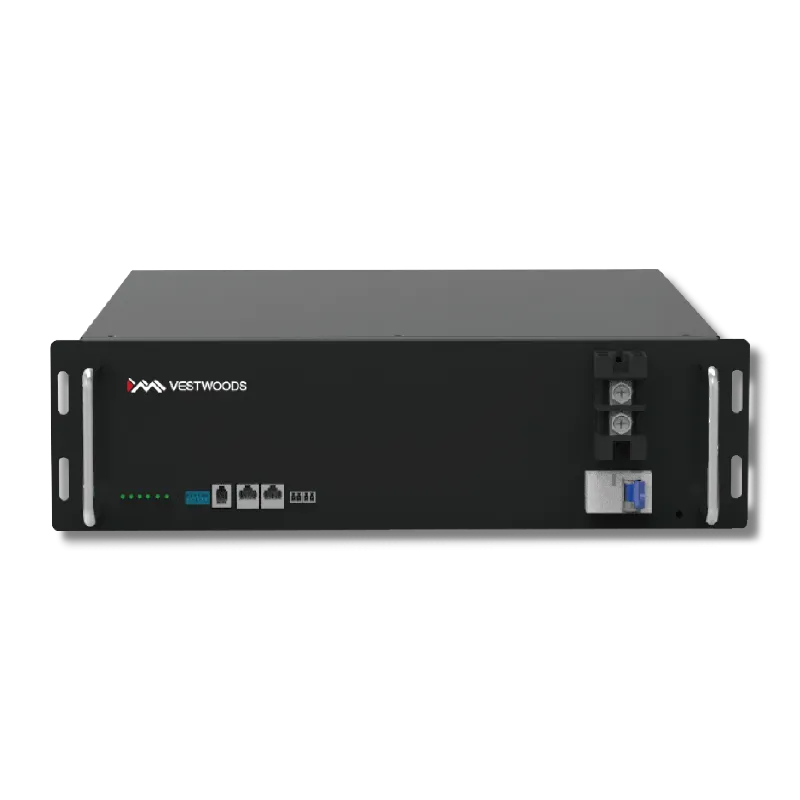

Presenting the Vestwoods 48V 100Ah -5KWh Lithium LiFePO4 Deep Cycle Rechargeable Battery Rack-Mountable Residential Energy Storage System: a groundbreaking solution that redefines home energy management.

With easy installation, advanced safety features, including a dedicated battery fan, an intelligent Battery Management System (BMS), and a user-friendly display interface, homeowners gain unprecedented control over energy usage.

This rack-mounted system seamlessly integrates renewable sources, empowering sustainable living while optimizing efficiency and cost-effectiveness.

Moreover, with the ability to parallel up to 8 units, Vestwoods ushers you into the future of energy management, transforming your home into a hub of intelligent, eco-conscious power utilization

Features and Advantages

High quality LFP cells
Long design life up to 15 + years @ 25℃
CAN/SNMP V2/SNMP V3 (optional)
Multiple protection methods based on patented BMS
Intelligent anti-theft solution (optional) , LCD(optional)
High rate charge / discharge current @ 50A

Technical Parameter

Model VT48100E-A1
Nominal Capacity 100Ah@0.2C, 25℃
Nominal Voltage 48V
RatedR Charge Voltage 54V
Max. Continuous Charge Current 100A@25℃
Discharge Cut-off Voltage 40.5V
Max. Continuous Discharge Current 100A@25℃
Temperature Range of Charge 0℃-60℃
Temperature Range of Discharge -20℃-60℃
Allowed Humidity Range ≤95% RH
Weight Approx. 41kg
Dimension(W*H*D)(Exclude mounting ears and hangers) 445*133.5*450mm
