Energy Storage Solution

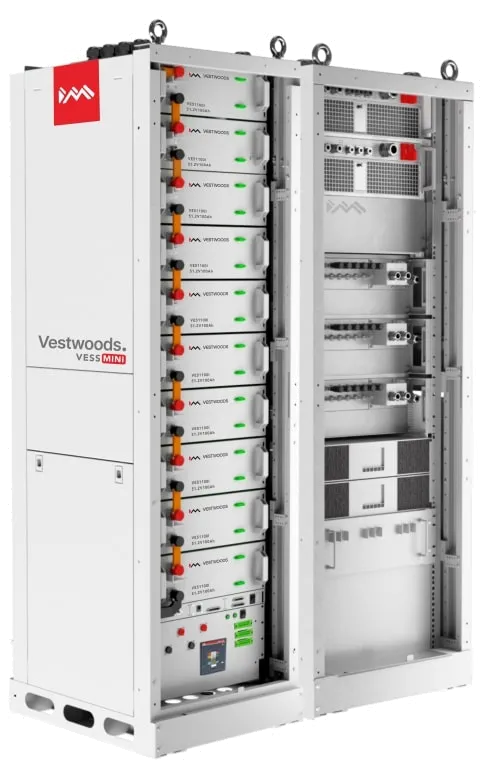

VESS MINI
VESS MINI-60K
Introducing VESS (VestWoods Energy Storage System): cutting-edge energy storage solutions for commercial and industrial applications. Experience unmatched performance, reliability, and cost savings with VESS Mini and Mini Plus models. The VESS Mini offers a capacity of 30kW with 51 kWh (kilowatt-hours) or 60kW with 102 kWh, while the VESS Mini Plus provides 100kW with 215 kWh or 200kW with 430 kWh capacity. Optimize energy usage with peak shaving and reduce reliance on the grid. Ensure uninterrupted power with reliable backup systems. Embrace sustainability with off-grid solutions harnessing renewable energy sources. Safety, efficiency, and durability are at the core of VESS, empowering businesses to thrive in an energy-conscious world.
Features and Advantages
Scalable Flexible and easily expanded as per the requirements.
All in one Design Integrate all things and easy for installation
Grid Compatibility Supports both on-grid and off-grid operations
Intelligent Monitoring Equip with cloud-based monitoring capabilities
Technical Parameter
| Model | VESS MINI-60K |
|---|---|
| AC Parameters | |
| Nominal Power | 60kW |
| AC Voltage (on-grid) | 400V (±15%) / 480V (±15%) |
| AC Voltage (on-grid) | 400V (±20%) / 480V (±5%) |
| AC Frequency | 50Hz/60Hz (±2.5Hz) |
| THDi | <3% |
| Grid Type | 3-Phase+PE |
| PV Parametrs | |
| PV Input Power | 90kW/Max.135kW(Optional) |
| MPPT Voltage Range | 200Vdc-810Vdc |
| Number of MPPT | 6 |
| Number of Strings for Each MPPT | 2 |
| Battery Parameters | |
| Nominal Energy | 102.4kWh |
| VE511001 Battery Module Electrical Spec | 51.2V/100AH/5.12kWh |
| VE511001 Battery Module Physical Spec | 482*155*560mm (W*H*D) /48kg |
| Number of Battery Modules | 20 |
| Number of Battery Cabinet | 2 |
| Nominal Voltage | 512Vdc |
| Nominal Voltage Range | 448Vdc ~ 576Vdc |
| Operating Temperature Range | Discharge -20°C ~ 55 °C / Charge 0°C ~ 50°C |
| Battery Certification | UN38.3, IEC62619, CE-EMC/ UL1642 for cell |
| General Specification | |
| On Grid and Off-grid Switching Time | 30ms |
| Relative Humidity | 5% ~ 95%RH |
| Cooling Mode | Natural cooling |
| IP Rating | IP20 |
| Altitude | 2000m without derating |
| System Dimension(W*H*D) | 1800*2000*700 mm |
| Display | Indicator light, web Interface |
| Communication | CAN/RS485/TCP /4G |
| Certificates | IEC62109-1, UL1741 |
| Other Specification (optional) | |
| Isolation Transformer | (400/400Vac or 480/480Vac) 100kVA |
| UPS | 1KVA ( backup for EMS, BMS, display, etc.) |
| Fire Fighting System | N1230 / Heptafluoropropane |
| Generator Compability | NI access (same port for generator or grid) |
