Battery Energy Storage
Smart Residential ESS Solution

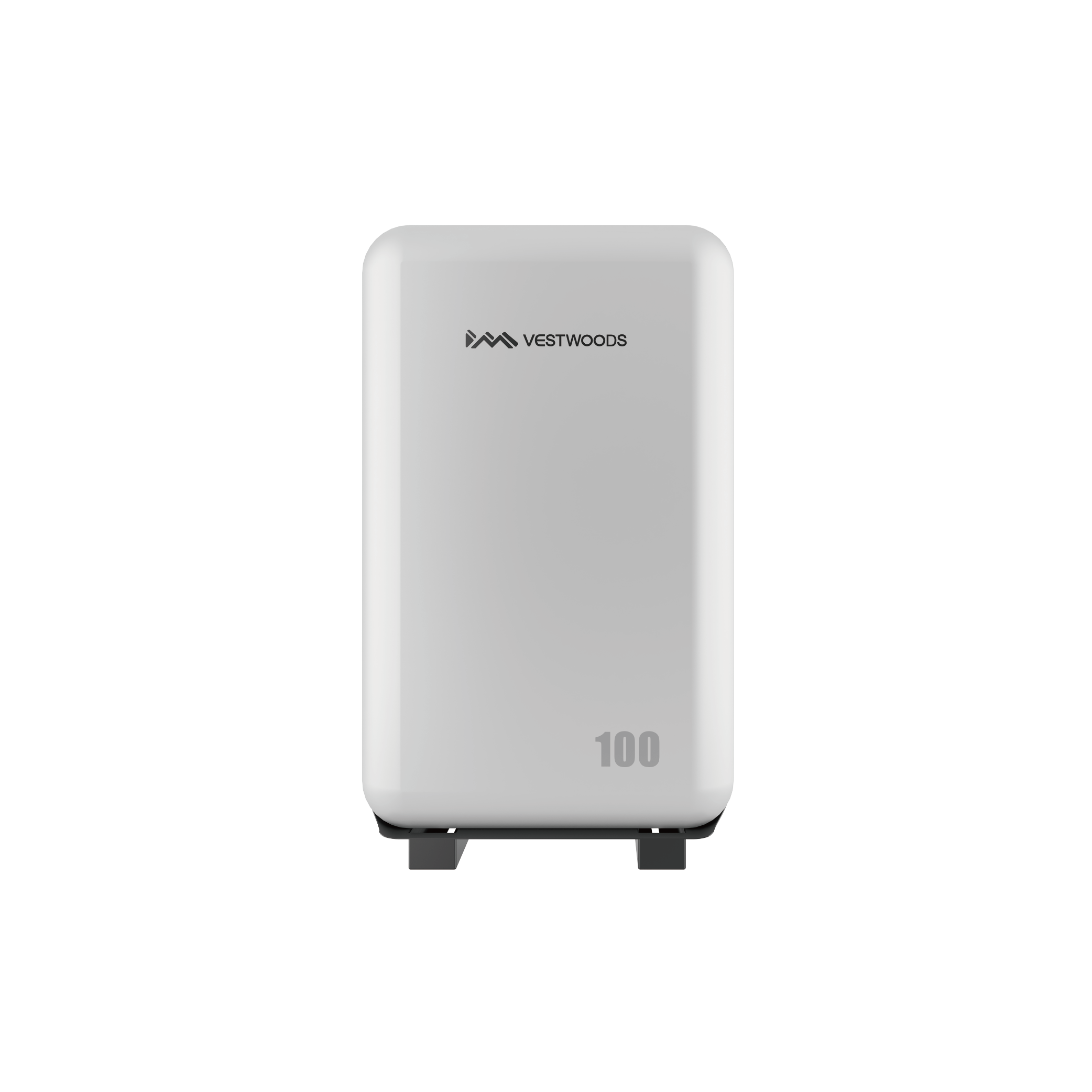

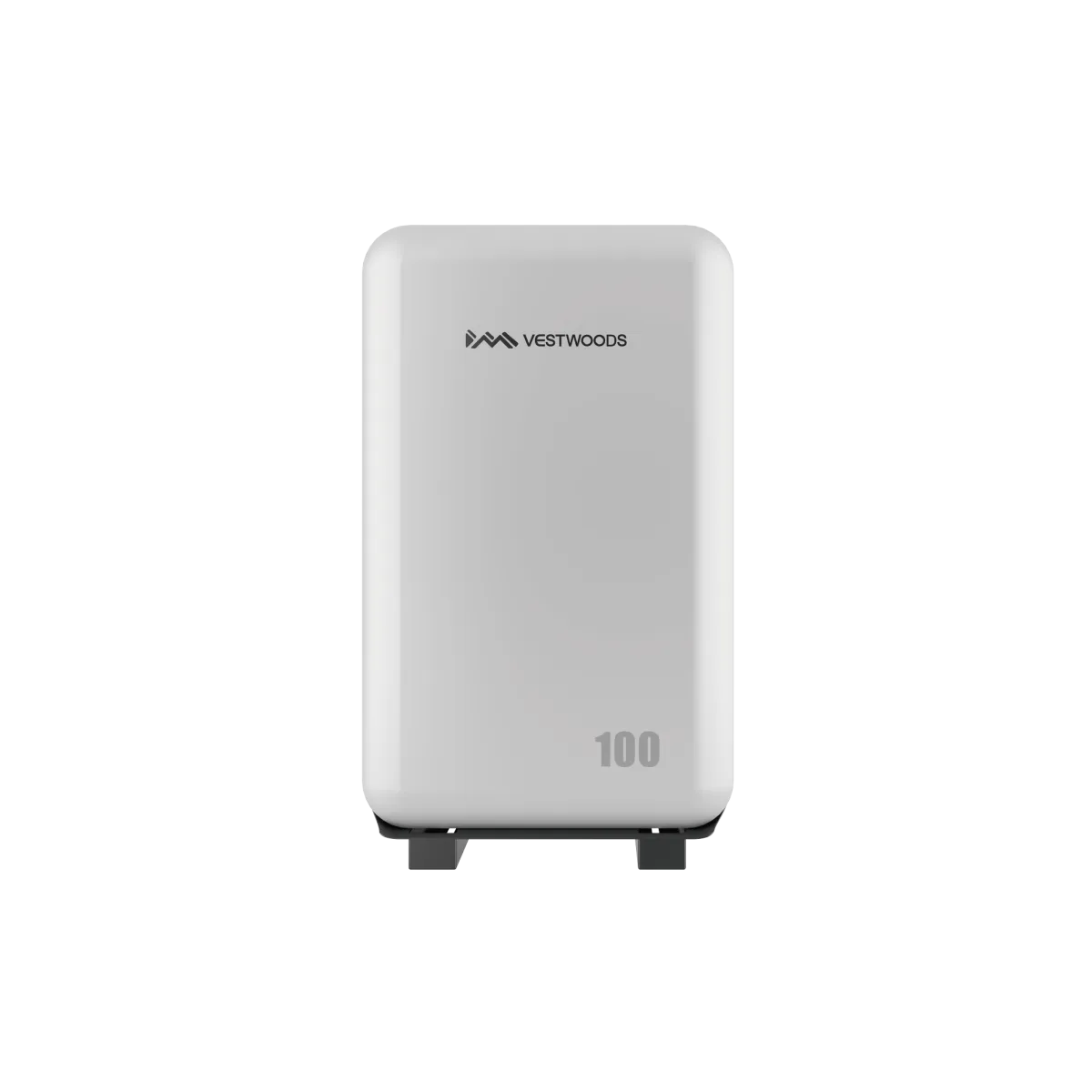

VE51100W
Vestwoods introduces a revolutionary residential energy storage solution, transforming energy management in homes. With easy installation, high safety standards, and intelligent energy management, homeowners can optimize energy usage, reduce reliance on the grid, and lower electricity bills. This scalable system provides seamless backup power and integrates renewable energy storage, empowering users to embrace a sustainable and cost-effective future.
Features and Advantages
Intelligent BMS, multiple real-time protections, timely failure warnings, and user friendly
Stronger overcurrent ability and larger capacity to meet daily needs
Provides remote monitoring APP and intelligent management of the cloud platform
Excellent performance standards, 6000 cycles lifespan
Offers wall-mounted and floor installation, easy installation to save time and cost
Fashionable appearance design with a variety of color options
Technical Parameter
| Model | VE51100W |
|---|---|
| Cell Cathode Chemistry | LiFePO4 |
| Nominal Battery Energy (kWh) | 5.12 |
| Nominal Capacity (Ah) | 100 |
| Nominal Voltage (Vdc) | 51.2 |
| Working Voltage (Vdc) | 44.8-57.6 |
| Rated Charge Voltage/@25℃ (Vdc) | 57.6 |
| Charge Current/Max. Continuous (A) | 100 |
| Discharge Cut-off Voltage/@25℃ (Vdc) | 44.8 |
| Discharge Current/Max. Continuous (A) | 100 |
| Depth of Discharge (%) | 80 |
| Ambient Temperature/Charge (℃) | 0~50 |
| Ambient Temperature/Discharge (℃) | -20~55 |
| Dimension/W*H*D (mm) | 410 * 666.2 * 179.5 |
| Net Weight (kg) | 50.0 |
| IP Rating | IP65 |
| Expansion | Up to 16 units in parallel |
| Color | Red/Silver/Blue/White |
| Communication | CAN/RS-485 |
| Cooling Mode | Natural |
| Cycle Life | ≥6000, 80%DOD@25℃ |
| Design Life | 15+ Years (25℃/°F) |
| Installation Method | Standed/Wall-mounted |
| Humidity | 5% ~ 95%(RH) No Condensation |
| Altitude(m) | <2000 |
| Alarms | Overcharge/Overdischarge/Overtemperature/Overcurrent Short Circuit etc. |
| Compatible Inverters | Deye/Senergy/Invt/Megarevo etc. |
| Certification & Safety Standard | UN38.3/ IEC62619/IEC62040/EN61000 |
