Battery Energy Storage
SMART HOME BATTERY

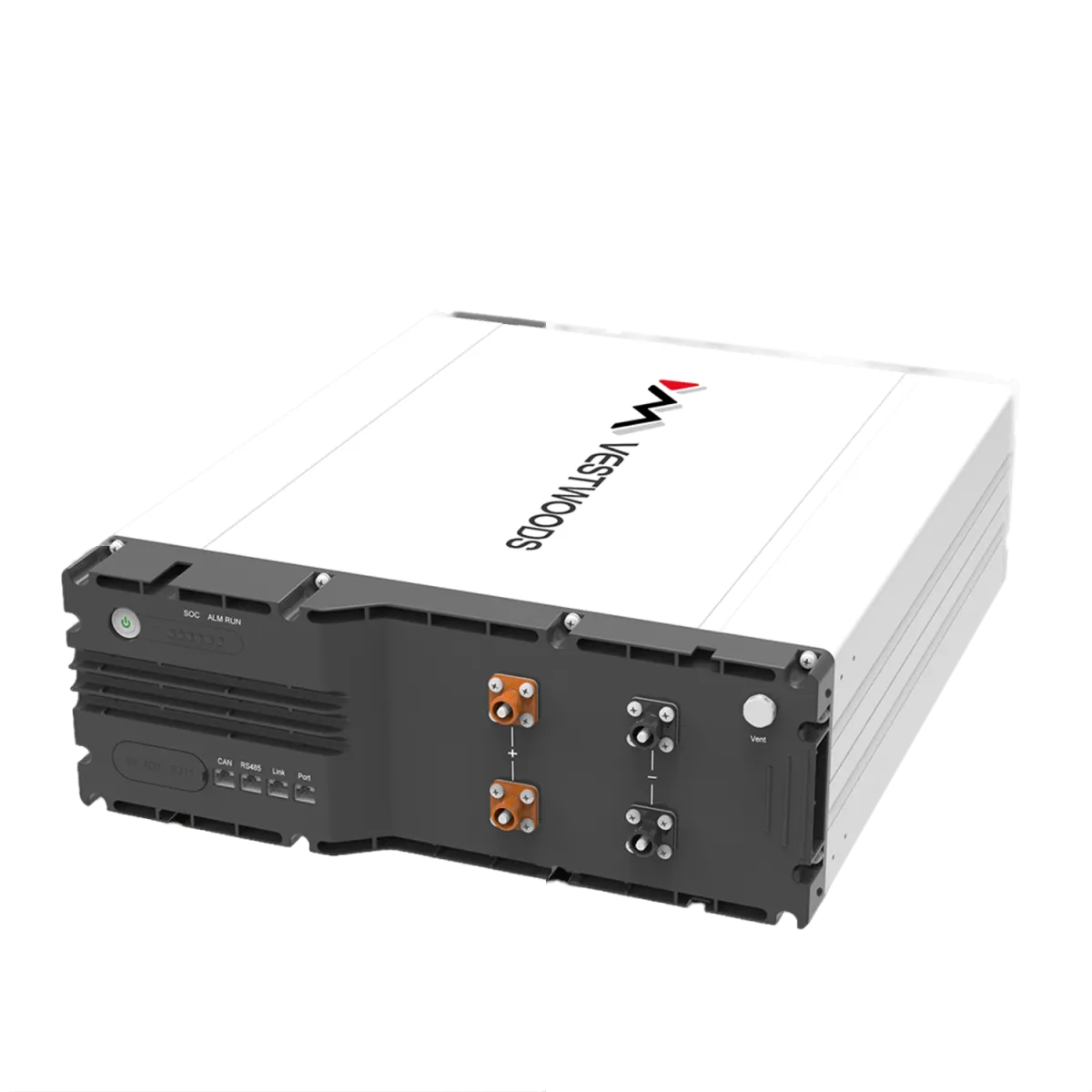

VE51100RS
Vestwoods introduces a revolutionary residential energy storage solution, transforming energy management in homes. With easy installation, high safety standards, and intelligent energy management, homeowners can optimize energy usage, reduce reliance on the grid, and lower electricity bills. This scalable system provides seamless backup power and integrates renewable energy storage, empowering users to embrace a sustainable and cost-effective future.
Features and Advantages
Self-designed BMS international
design certification
Long cyclic life-6000 cycles
15 years design life
Most safety LiFePO4 as
cathode material
High rate charge/discharge current @ 100A
Integrated with wall-mounted and
19inch rack or cabinet installation
IP65 higher degree of protection
Easier installed outdoor
Technical Parameter
| Model | VE51100RS |
|---|---|
| Cell Cathode Chemistry | LiFePO4 |
| Nominal Battery Energy (kWh) | 5.12 |
| Nominal Capacity (Ah) | 100 Ah@25 ℃/77 °F |
| Nominal Voltage (Vdc) | 51.2 |
| Working Voltage (Vdc) | 42.0-57.6 V |
| Rated Charge Voltage/@25℃ (Vdc) | 56.8-57.6 V |
| Charge Current/Max. Continuous (A) | 100 |
| Discharge Cut-off Voltage/@25℃ (Vdc) | 42.0 V |
| Discharge Current/Max. Continuous (A) | 100 |
| Depth of Discharge (%) | 80% DOD |
| Temperature/Charge (℃) | 0~55 ℃/32-131 °F |
| Temperature/Discharge (℃) | -20~60 ℃/-4-140 °F |
| Dimension/W*H*D (mm) | 483*517*155 mm(with handles) |
| Dimension/W*D*H (inch) | 19*20.4*6.1 inch(with handles) |
| Net Weight (kg) | 45.0 kg |
| IP Rating | IP65 |
| Expansion | Up to 6 units in parallel |
| Communication | 2*CAN/RS-485 |
| Cooling Mode | Natural |
| Cycle Life | ≥6000,80%DOD@25 ℃/77 °F |
| Design Life | 15+ Years@25 ℃/77 °F |
| Installation Method | Wall/Floor/19 or 23 inch Cabinet/Rack |
| Humidity | 5% ~ 95%(RH) No Condensation |
| Altitude(m) | <2000m |
| Protections | Overcharge/Overdischarge/Overtemperature/Overcurrent/Short Circuit etc. |
| Compatible Inverters Brand | Deye/Voltronic/Senergy/Invt/Megarevo/Victron/Phocos etc. |
| Designed International Standard | UN38.3/IEC62619/EN61000 |
