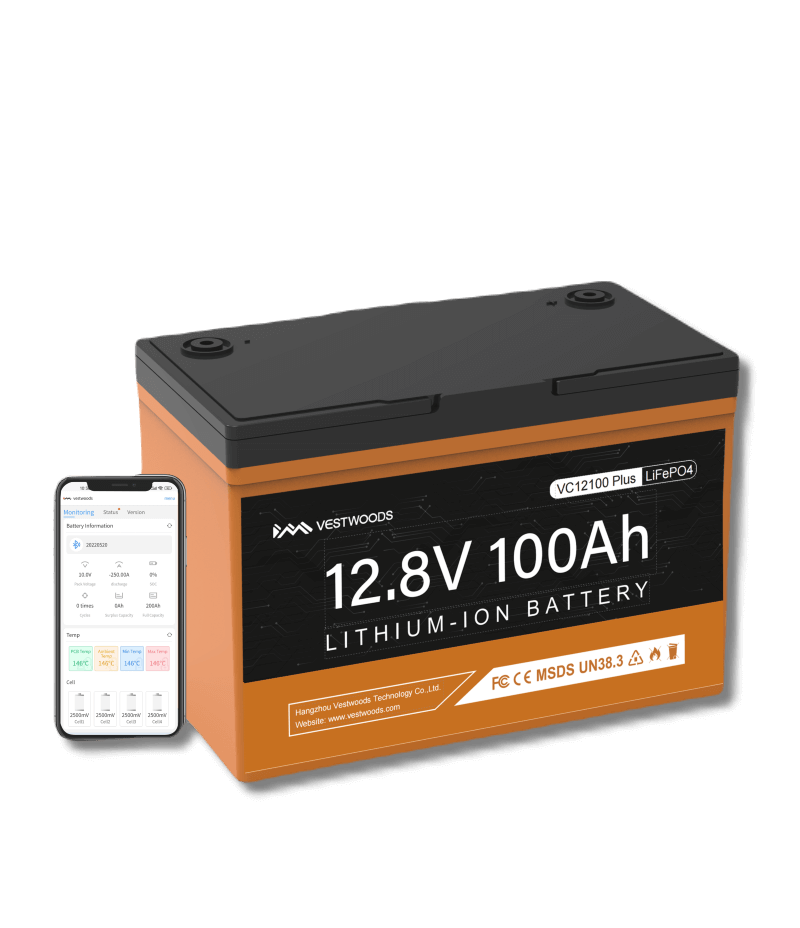

Vcube Battery

Encube Series VC12100 Plus

12V LifePO4 Li-ion Battery

The ultimate solution for various applications. Our rechargeable LiFePO4 batteries are rapidly becoming the preferred choice due to their exceptional features, including high energy density, extended lifespan, and outstanding performance.

Vestwoods Technology's LiFePO4 batteries are designed with a lithium iron phosphate cathode material, known for its stable chemistry. This chemistry ensures the batteries are safe, reliable, and highly efficient, making them superior to other types of lithium-ion batteries available in the market.

With their reliable and consistent power delivery, our Vcube series batteries are well-suited for a wide range of applications. They are ideal for electric vehicles, solar power systems, and serve as reliable backup power sources for critical systems. No matter the application, our batteries provide a dependable and uninterrupted power supply to keep your systems running smoothly.

One of the standout advantages of our LiFePO4 batteries is their extended lifespan. Compared to other rechargeable battery types, they offer a longer cycle life, reducing the need for frequent replacements and saving you both time and money in the long run.

The Vcube series batteries are available in a 12V configuration with various capacities ranging from 8 Ah to 200 Ah, ensuring compatibility with a diverse range of devices and systems. Whether it's for emergency lights, CCTV systems, renewable energy installations, or other applications, our batteries provide a reliable and efficient power solution.

Choose Vestwoods Technology's Vcube series batteries for their superior performance, exceptional lifespan, and compatibility with a wide range of applications. Experience the reliability and power of our LiFePO4 batteries to meet your energy needs effectively and efficiently.

Features and Advantages

Cell Balancing Extend lifetime of battery.
Current>300mA
Safe and reliable
The safest LFP battery cell
Bluetooth built-in
Easy to access battery status
Battery management
system (BMS) with chip
Supports series
and parallel use
High compatibility
Support to connect with lead-acid battery

Technical Parameter

Model VC12100 Plus
Electrical
Nominal Voltage/V 12.8
Nominal Capacity/Ah 100
Rated Energy/Wh 1280
BMS Function Overcharge, overdischarge, overcurrent and temperature protection
Recommended Charge Voltage/V 14.4 - 14.6
Discharge Cut-off Voltage/V 10.8
Standard Charge Current/A 50
Max. Charge Current/A 100
Continuous Discharge Current/A 100
Peak Discharge Current/A@ S 300
Voltage Configurations 12,24,36 or 48V
Maximum Configuration Incerse capacity in series or increasing voltage parallel
Maximum Time Between Charges 3 months
Monitoring Bluetooth
Mechanical
Dimension(L*W*H)/ mm 307*169*213
Weight/kg Approx. 11.5
Terminal M8
Casing material ABS
Environment
Working Temperature Range/°C Charge: 0~55 Discharge: -20~60
Humidity Range/RH <95%
Storage temperature/°C 15~35
IP protection level IP65
