Hybrid Inverter

Single Phase Hybrid Inverter

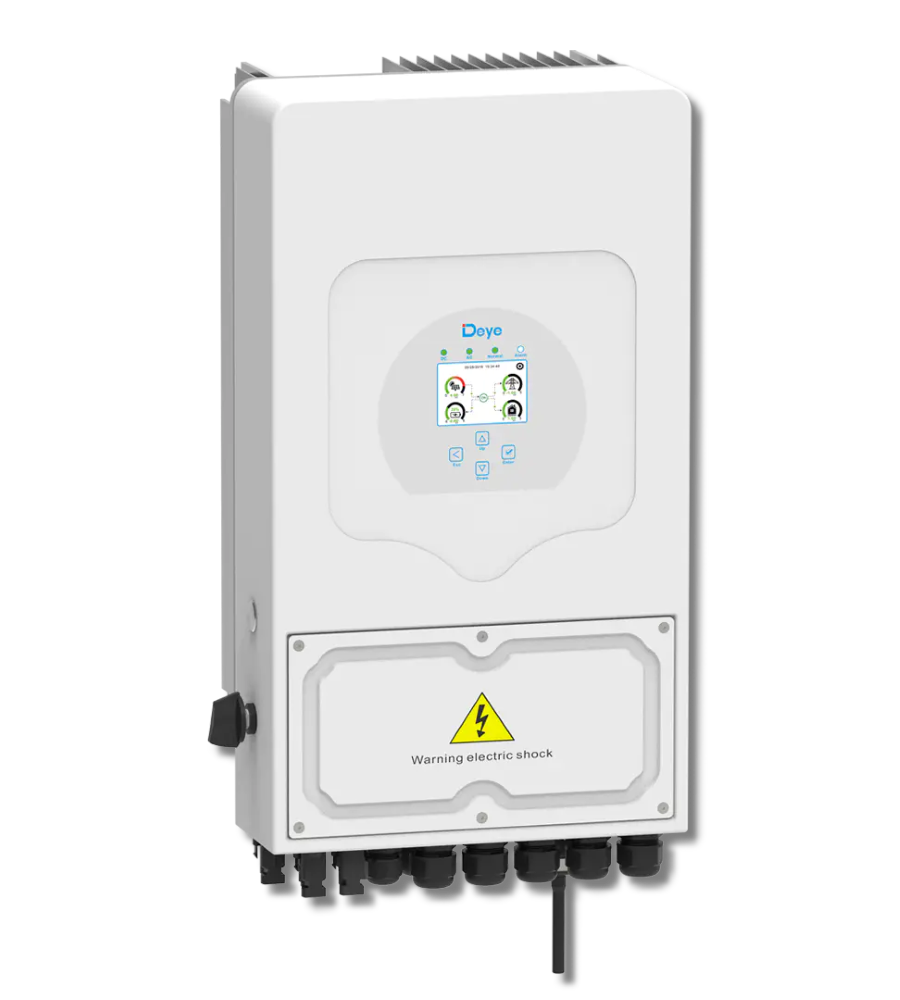

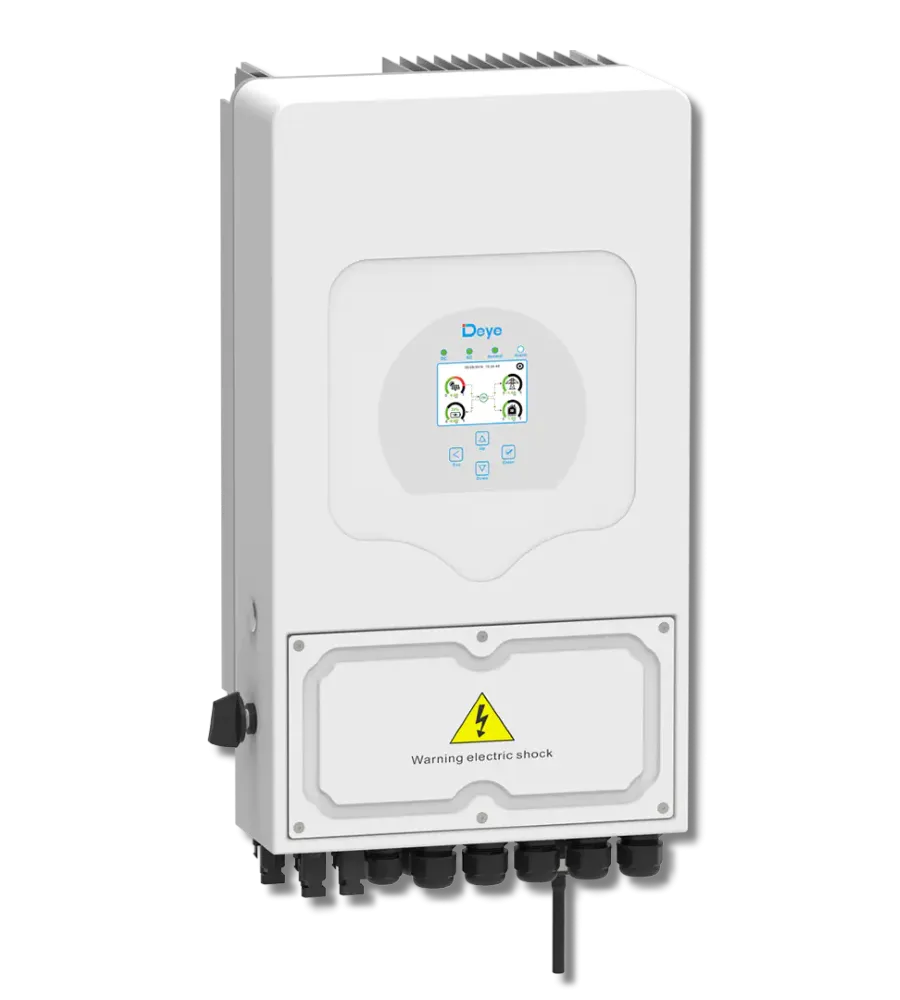

The SUN 5K-SG05 hybrid inverter is specifically designed for residential and light commercial applications. With its advanced features, this inverter maximizes the self-consumption rate of solar energy, allowing you to increase your energy independence.

During daylight hours, the PV system generates electricity, which is first supplied to the loads in your home or business. Any excess energy produced is then intelligently directed to charge the battery through the SUN 5K-SG05 inverter. This way, the surplus energy is efficiently stored for later use when the loads require it, ensuring optimal utilization of your solar power.

Additionally, the SUN 5K-SG05 hybrid inverter is designed to support an uninterrupted power supply. In the event of a grid blackout, the battery can be charged by a diesel generator, guaranteeing a continuous and reliable power supply to your critical loads.

To enhance communication and monitoring capabilities, the SUN 5K-SG05 hybrid inverter comes equipped with an RS485/CAN port. This allows seamless communication with battery systems, facilitating efficient control and monitoring of the battery's performance.

Choose the SUN 5K-SG05 hybrid inverter to maximize your self-consumption of solar energy, increase your energy independence, and enjoy an uninterrupted power supply even during grid outages. ThaiSolar Power offers reliable and efficient solutions to meet your residential and light commercial energy needs.

Features and Advantages

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

Technical Parameter

Model SUN-5K-SG05
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 120
Max. Discharging Current (A) 120
External Temperature Sensor Yes
Charging Curve 3 Stages / Equalization
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 6500
Rated PV Input Voltage (V) 370 (125-500)
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Full Load DC Voltage Range (V) 300-425
PV Input Current (A) 13+13
Max. PV ISC (A) 17+17
No.of MPP Trackers 2
No.of Strings per MPP Tracker 1+1
AC Output Data
Rated AC Output Active Power (W) 5000
Max AC Output Active Power (W) 5000
AC Output Rated Current (A) 22.7/21.7
Max AC Output Current (A) 25/23.9
Max Output short circuit current (A) 35
Peak Power (off grid) 2 time of rated power, 10 S
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Power Factor 1
Output Frequency and Voltage 50/60Hz; L/N/PE 220/230Vac
Grid Type Single Phase
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99.90%
Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
