Hybrid Inverter
Three Phase Hybrid Inverter

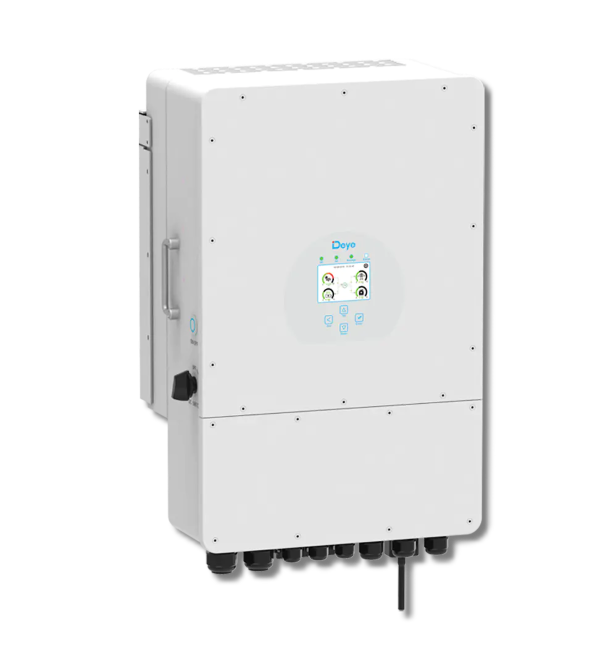

SUN-10K-SG04LP3-EU
With a low battery voltage of 48V, this inverter ensures a safe and reliable system. Its compact design and high-power density make it an ideal choice while supporting a 1.3 DC/AC ratio, which helps save on device investments. The SUN 5/6/8/10/12K-SG series also offers three-phase unbalanced output, expanding the range of application scenarios.
Equipped with two CAN ports for BMS and parallel connection, one RS485 port for BMS, one RS232 port for remote control, and one DRM port, this inverter provides smart and flexible system management options. Upgrade to the SUN 5/6/8/10/12K-SG hybrid inverter for a reliable and intelligent energy solution.
Features and Advantages
100% unbalanced output, each phase; Max. output up to 50% rated power
DC couple and AC coupleto retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
48V low voltage battery, transformer isolation design
6 time periods for battery charging/discharging
Support storing energy from diesel generator
Technical Parameter
| Model | SUN-10K-SG04LP3-EU |
|---|---|
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 210 |
| Max. Discharging Current (A) | 210 |
| External Temperature Sensor | Yes |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 13000 |
| Rated PV Input Voltage (V) | 550 (160-800) |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Full Load DC Voltage Range (V) | 350-650 |
| PV Input Current (A) | 26+13 |
| Max. PV ISC (A) | 34+17 |
| No.of MPP Trackers | 2 |
| No.of Strings per MPP Tracker | 2+1 |
| AC Output Data | |
| Rated AC Output Active Power (W) | 10000 |
| Max AC Output Active Power (W) | 11000 |
| AC Output Rated Current (A) | 15.2/14.5 |
| Max AC Output Current (A) | 16.7/15.9 |
| Max. Three-phase Unbalanced Output Current (A) | 22.7/21.7 |
| Max Output short circuit current (A) | 75 |
| Max. Continuous AC Passthrough (A) | 45 |
| Peak Power (off grid) | 2 time of rated power, 10 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type | Three Phase |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection |
| Surge Protection | DC Type III / AC Type III |
| Over Voltage Category | DC Type II/AC Type III |
